C2328 - Silicon NPN Transistor

C2328 Description

C2328 C2328 Silicon NPN Epitaxial Transistor .
The C2328 is designed for use in power amplifier applications and power switching applications Features:. Low collector saturation voltage.

C2328 Features

* Low collector saturation voltage
* Complementary to A1020 Chip Appearance Chip Size Chip Thickness Bonding Pad Size Front Metal Backside Metal Scribe line width Wafer Size Base Emitter 760um×760um 210±20um 160×170um 130×260um Al Au(As) 60um 6 inch Electrical Characteristics( Ta=25℃)

📥 Download Datasheet

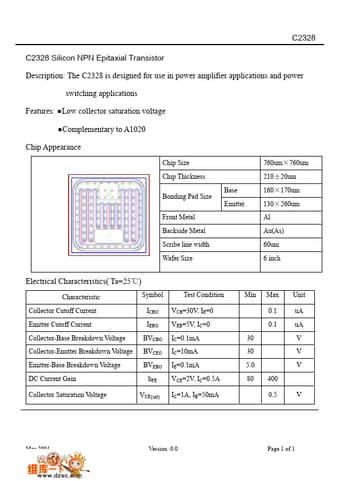

Preview of C2328 PDF

Datasheet Details

Part number
C2328
Manufacturer
ETC
File Size
223.56 KB
Datasheet
C2328-ETC.pdf
Description
Silicon NPN Transistor
