CH7001C

VGA to NTSC/PAL Encoder

CH7001C Features

* Enhanced bandwidth and signal-to-noise ratio for higher video performance

* Integrated triple video rate 8-bit analog to digital converters for input RGB

* 3-line digital vertical filtering with pinprogrammable characteristics for optimum antiflicker and resolution

CH7001C General Description

Chrontel’s CH7001C VGA to NTSC/PAL encoder is a stand-alone integrated circuit that converts analog VGA inputs directly into 525-line (M) NTSC or 625-line (B, D, G, H, I) PAL composite video and S-video outputs. This circuit integrates a digital NTSC/PAL encoder with 8-bit ADC and DAC interfaces, a .

CH7001C Datasheet (108.25 KB)

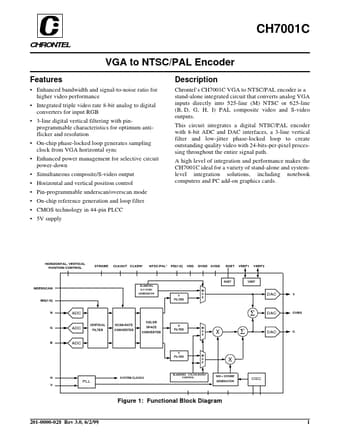

Preview of CH7001C PDF

Datasheet Details

Part number:

CH7001C

Manufacturer:

ETC

File Size:

108.25 KB

Description:

Vga to ntsc/pal encoder.
