CM16022ASFAYB-I1 LCD

Ambient temperature :15°C to 35 °C Humidity: 30% to 60 % LCM ( E.U.T ) : Power up Manufacture: Noise Ken, Model No. ESD-100L See drawing 1 0 to ± 6 KV Discharge point, see drawing 2 0 to ± 12KV Discharge point, see drawing 1 No malfunction of unit. Temporary malfunction of unit which can be recovere.

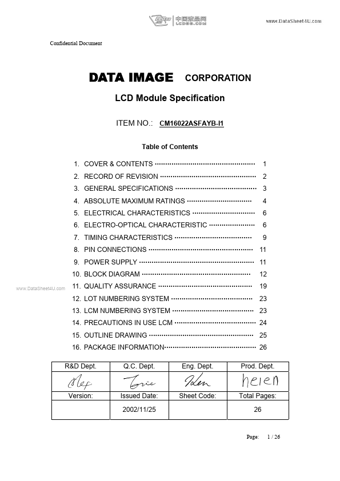

Confidential Document DATA IMAGE CORPORATION LCD Module Specification ITEM NO.: CM16022ASFAYB-I1 Table of Contents 1. COVER & CONTENTS 1 2. RECORD OF REVISION 2 3. GENERAL SPECIFICATIONS 3 4. ABSOLUTE MAXIMUM RATINGS 5. ELECTRICAL CHARACTERISTICS 6. ELECTRO-OPTICAL CHARACTERISTIC .
