D4800 Datasheet - ETC

D4800 Stereo 290mW Speaker Driver

The D4800 is an integrated class AB stereo headphone amplifier contained in an SOP8 or a DIP8 plastic package . The D4800 is capable of delivering290mW of max . output power to an 8Ω load with less than 10% (THD+N) from a 5V power supply . The device has been primarily developed for portable digital.

D4800-ICdemi.pdf

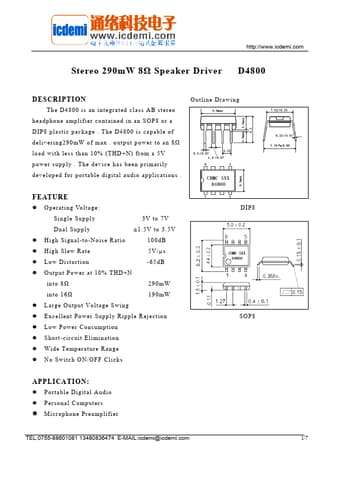

Preview of D4800 PDF
D4800 Datasheet Preview Page 2 D4800 Datasheet Preview Page 3

Datasheet Details

Part number:

D4800

Manufacturer:

ETC

File Size:

236.11 KB

Description:

Stereo 290mw speaker driver.
