Description:

Gender changer.

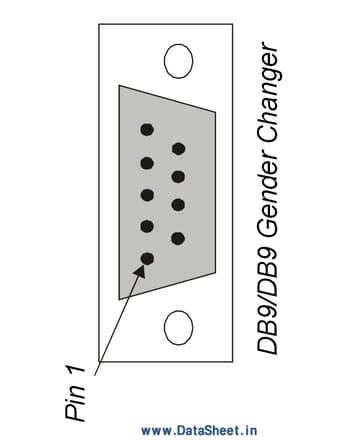

DB9, Gender Changer

RS232 DB9M Information The DB9 (male) connector on the PowermateTM 330 is normally used to provide serial input and output to/from a remote computer.

The signal levels are fully RS232 compliant with data rates to 115,200 baud supported by the Model 330 (connected computer specifications may be slower).

The wiring of the DB9 connector is: DB9 1 2 3 4 5 6 7 8 9 SIGNAL N/C Receive Data (to Powermate) Transmit Data (from Powermate) N/C Signal Ground N/C Request to Send (from Powermate) Clear to Send
