DBX2151 Voltage Controller Amp

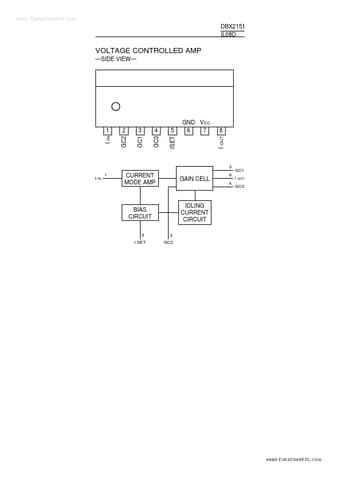

www.DataSheet4U.com DBX2151 IL08D VOLTAGE CONTROLLED AMP SIDE VIEW 1 I IN 2 GC2 3 GC1 4 GC3 5 ISET GND VCC 6 7 8 I OUT 3 GC1 I OUT GC3 I IN 1 CURRENT MODE AMP GAIN CELL 8 4 BIAS CIRCUIT 5 I SET 2 GC2 IDLING CURRENT CIRCUIT .
