DCH0505S Datasheet, INPUT, ETC

DCH0505S Features

• Input
•
    –55°C to 100°C
• 4 to 6.5, 9 to 15, or 20 to 32 VDC input
• Fully isolated
• Output regulated from input side
• 100 kHz typical

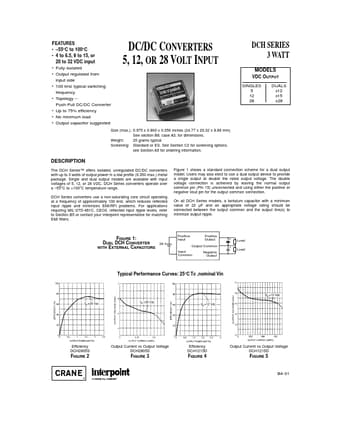

PDF File Details

Part number:

DCH0505S

Manufacturer:

ETC

File Size:

79.22kb

Download:

📄 Datasheet

Description:

Dc/dc converters 5/ 12/ or 28 volt input. The DCH Series™ offers isolated, unregulated DC/DC converters with up to 3 watts of output power in a low profile (0.350 max.) metal

DCH0505S Application

• Applications requiring MIL-STD-461C, CEO3, reflected input ripple levels, refer to Section B5 or contact your Interpoint representative for matching
