DDU4C-5150

5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C)

DDU4C-5150 Features

* Five equally spaced outputs Fits standard 8-pin DIP socket Low profile Auto-insertable Input & outputs fully CMOS interfaced & buffered 2 10 T L fan-out capability IN 1 14 12 T2 T4 GND 4 10 6 7 8 data 3 ® delay devices, inc. PACKAGES VCC T

DDU4C-5150 General Description

The DDU4C-series device is a 5-tap digitally buffered delay line. The signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an amount determined by the device dash number (See Table). The total delay of the line is measured from IN to T5. The nominal tap-to-tap delay increment i.

DDU4C-5150 Datasheet (65.50 KB)

Preview of DDU4C-5150 PDF

Datasheet Details

Part number:

DDU4C-5150

Manufacturer:

ETC

File Size:

65.50 KB

Description:

5-tap/ hcmos-interfaced fixed delay line (series ddu4c).

📁 Related Datasheet

DDU4C-5100 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5125 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5050 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5060 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5075 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5200 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5250 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

DDU4C-5300 - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) (ETC)
DDU4C 5-TAP, HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C) FEATURES • • • • • • Five equally spaced outputs Fits standard 8-pin DIP socket Low pro.

TAGS

DDU4C-5150 5-TAP HCMOS-INTERFACED FIXED DELAY LINE SERIES DDU4C ETC

Image Gallery

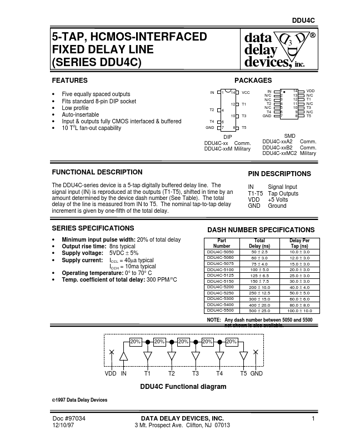

DDU4C-5150 Datasheet Preview Page 2 DDU4C-5150 Datasheet Preview Page 3
