DDU8C3-5004

5-TAP/ 3.3V CMOS-INTERFACED FIXED DELAY LINE

DDU8C3-5004 Features

* Five equally spaced outputs Fits standard 8-pin DIP socket Low profile Auto-insertable Input & outputs fully CMOS interfaced & buffered 2 10 T L fan-out capability IN T2 T4 GND data 3 ® delay devices, inc. PACKAGES 1 2 3 4 8 7 6 5 VDD T1 T

DDU8C3-5004 General Description

PIN DESCRIPTIONS The DDU8C3-series device is a 5-tap digitally buffered delay line. The IN Signal Input signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an T1-T5 Tap Outputs amount determined by the device dash number (See Table). For dash VDD +3.3 Volts numbers 5020 and .

DDU8C3-5004 Datasheet (45.78 KB)

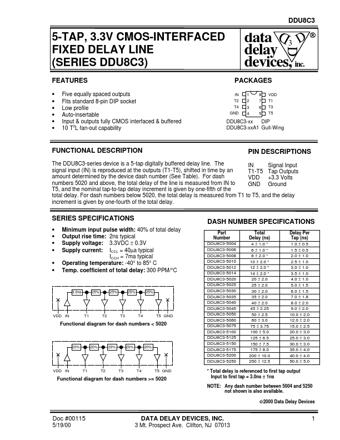

Preview of DDU8C3-5004 PDF

Datasheet Details

Part number:

DDU8C3-5004

Manufacturer:

ETC

File Size:

45.78 KB

Description:

5-tap/ 3.3v cmos-interfaced fixed delay line.
