DM336P

V.34 Integrated Data/ Fax/Voice/Speakerphone Modem Device Set

DM336P Features

* 3 Chipset

* Chip 1: DM6383 Modem Controller Unit with PnP for ISA (MCU) DM6383 Description 4 DM6383 Block Diagram 4 DM6383 Features 4 DM6383 Pin Configuration 5 DM6383 Pin Description 6 DM6383 Functional Description 8 1. Operating Mode Selection 8 2. Micro-controller (8031) Reference

DM336P General Description

The DM336P integrated modem is a four chipset design that provides a complete solution for state-ofthe-art, voice-band Plain Old Telephone Service (POTS) communication. The modem provides for Data (up to 33,600bps), Fax (up to 14,400bps), Voice and Full Duplex Speaker-phone functions to comply with .

DM336P Datasheet (341.57 KB)

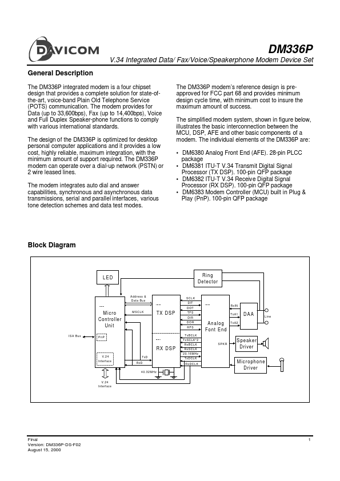

Preview of DM336P PDF

Datasheet Details

Part number:

DM336P

Manufacturer:

ETC

File Size:

341.57 KB

Description:

V.34 integrated data/ fax/voice/speakerphone modem device set.
