DV20400 Datasheet - ETC

DV20400 20 characters x 4 lines Display

DV series DV-20400 Mechanical Data Item Module Dimensions Viewing Area Dot Size Dot Pitch Standard Value 98.0(W) X 60.0(H) X 10.5 (D) 76.0(W) X 25.2(H) 0.55(W) X 0.55(H) 0.60(W) X 0.60(H) Unit mm mm mm mm 20 characters x 4 lines Absolute Maximum Ratings Item Supply Voltage for Logic Supply Voltage for LCD Drive Input Voltage Operation Temperature Storage Temperature Symbol Vdd - Vss Vdd - Vee VI Topr Tstg Min. -0.3 Vdd - 13.5 -0.3 0 -20 Standard Value Typ. -Max. 7.0 Vdd + 0.3.

DV20400 Datasheet (959.82 KB)

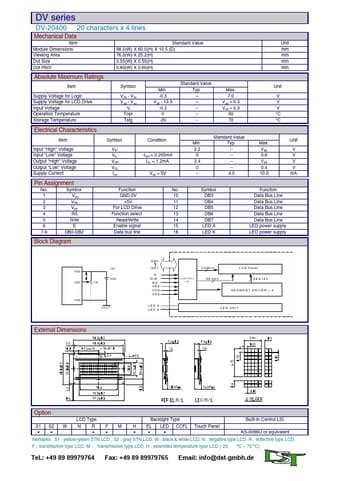

DV20400 Datasheet Preview — Preview of DV20400 PDF

Datasheet Details

Part number:

DV20400

Manufacturer:

ETC

File Size:

959.82 KB

Description:

20 characters x 4 lines display.
