EB03

TRIPLE INDEPENDENT LOGIC INTERFACED HALF BRIDGES

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Adam Technologies Inc PCE-B-03 RECEPTICAL WITH HOOKS 3P 2.54MM DigiKey 4 1 units
$0.44

EB03 Datasheet (101.17 KB)

Preview of EB03 PDF

Datasheet Details

Part number:

EB03

Manufacturer:

ETC

File Size:

101.17 KB

Description:

Triple independent logic interfaced half bridges.

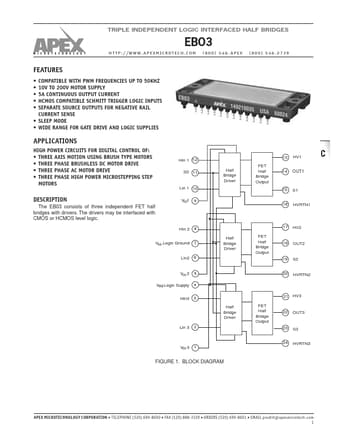

TRIPLE INDEPENDENT LOGIC INTERFACED HALF BRIDGES EBO3 M I C R O T E C H N O L O G Y HTTP://WWW.APEXMICROTECH.COM (800) 546-APEX (800) 546-2739 FE.

EB03 Features

* COMPATIBLE WITH PWM FREQUENCIES UP TO 50KHZ 10V TO 200V MOTOR SUPPLY 5A CONTINUOUS OUTPUT CURRENT HCMOS COMPATIBLE SCHMITT TRIGGER LOGIC INPUTS SEPARATE SOURCE OUTPUTS FOR NEGATIVE RAIL CURRENT SENSE

* SLEEP MODE

* WIDE RANGE FOR GATE

EB03 General Description

The EB03 consists of three independent FET half bridges with drivers. The drivers may be interfaced with CMOS or HCMOS level logic. 16 Hin 2 Vss,Logic Ground 8 17 Half Bridge Driver FET Half Bridge Output HV2 7 18 OUT2 Lin2 6 19 20 S2 HVRTN2 Vcc 2 5 Vdd,Logic Supply 4 Hin3 3 Half Bridg.
