ECJ3YB0J226M Datasheet - ETC

ECJ3YB0J226M Capacitance Test Data

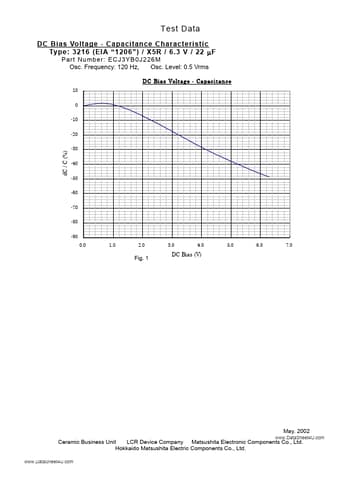

Test Data DC Bias Voltage - Capacitance Characteristic Type: 3216 (EIA “1206”) / X5R / 6.3 V / 22 µ F Part Number: ECJ3YB0J226M Osc. Frequency: 120 Hz, Osc. Level: 0.5 Vrms DC Bias Voltage - Capacitance 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 dC / C (%) Fig. 1 DC Bias (V) May. 2002 Ceramic Business Unit 　LCR Device Company 　Matsushita Electronic Components Co., Ltd. Hokkaido Matsushita Electric Components Co., Ltd. www.DataSheet4U.com www.DataSheet4U.com www..

ECJ3YB0J226M Datasheet (97.80 KB)

Preview of ECJ3YB0J226M PDF

Datasheet Details

Part number:

ECJ3YB0J226M

Manufacturer:

ETC

File Size:

97.80 KB

Description:

Capacitance test data.
