ES62UL256 - 32Kx8 Bit Ultra-Low Power Asynchronous Static RAM

Datasheet Summary

Description

CE H L L L WE X L H H OE X X L H I/O0-I/O7 High Z Data In Data Out High Z MODE Standby Write Read Active POWER Standby Active - Standby Active - Standby Active - Standby

Stock No.

Features

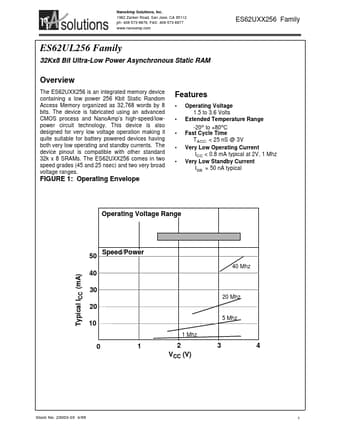

  • Operating Voltage 1.5 to 3.6 Volts Extended Temperature Range -20 o to +80oC Fast Cycle Time TACC < 25 nS @ 3V Very Low Operating Current ICC < 0.8 mA typical at 2V, 1 Mhz Very Low Standby Current ISB = 50 nA typical FIGURE 1: Operating Envelope Operating Voltage Range 50 Typical ICC (mA) 40 30 Speed/Power 40 Mhz 20 Mhz 20 10 1 Mhz 5 Mhz 0 1 2 VCC (V) 3 4 Stock No. 23003-03 4/99 1 NanoAmp Solutions FIGURE 2: Pin Configurations ES62.
