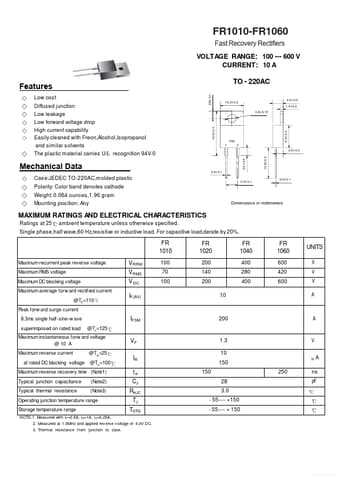

FR1010
Features
Low cost Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0
2.8± 0.1
- 220AC
10.2± 0.2
¦Õ 3.8± 0.15
4.5± 0.2 1.4± 0.2
19.0± 0.5
PIN 1 2
8.9± 0.2 2.6± 0.2 3.5± 0.3 13.8± 0.5 5.0± 0.1 0.5± 0.1
Mechanical Data
Case:JEDEC TO-220AC ,molded plastic Polarity: Color band denotes cathode Weight: 0.064 ounces,1.96 gram Mounting position: Any
0.9± 0.1
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
FR 1010
Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forw ard rectified current @TC=110 Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load @TJ =125
FR 1020
200 140 200...
