FUF5400 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier

📥 Download Datasheet

Datasheet preview – FUF5400

Datasheet Details

Part number FUF5400
Manufacturer ETC
File Size 38.34 KB
Description 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
Datasheet download datasheet FUF5400 Datasheet
Additional preview pages of the FUF5400 datasheet.

📁 Similar Datasheet

Other Datasheets by ETC
  • FUF5401 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF5402 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF5404 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF5406 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF5407 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF5408 - 3 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF4001 - 1 Amp. Glass Passivated Ultrafast Recovery Rectifier
  • FUF4002 - 1 Amp. Glass Passivated Ultrafast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text

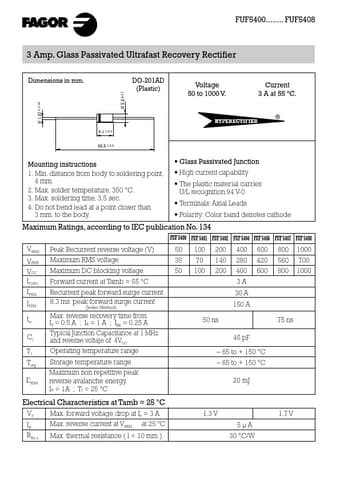

FUF5400........ FUF5408 3 Amp. Glass Passivated Ultrafast Recovery Rectifier Dimensions in mm. DO-201AD (Plastic) Voltage 50 to 1000 V. Current 3 A at 55 ºC. ® 9.1 ± 0.3 62.5 ± 0.5 Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350 °C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 3 mm. to the body. • Glass Passivated Junction • High current capability • The plastic material carries U/L recognition 94 V-0 • Terminals: Axial Leads • Polarity: Color band denotes cathode FUF 5400 FUF 5401 FUF 5402 FUF 5404 FUF 5406 FUF 5407 FUF 5408 Maximum Ratings, according to IEC publication No.
