G5S12020PMT Silicon Carbide Schottky Diode

G5S12020PMT Description

G5S12020PMT Silicon Carbide Schottky Diode .

G5S12020PMT Features

* Zero reverse recovery current
* Zero forward recovery voltage
* Temperature independent switching behavior
* High temperature operation
* High frequency operation Benefits
* Unipolar rectifier
* Substantially reduced switching losses

G5S12020PMT Applications

* SMPS, PFC
* Solar application, UPS, EV/HEV
* Motor drives, Wind turbine, Rail traction VRRM IF (TC = 149°C) Qc 1200V 20A 80nC TO-247AC Inner Circuit G = GPT 5 = Gen5 S = SiC Schottky Diode 120 = Voltage Rating 1200V 20 = Current Rating 20A PMT = TO-247AC DDDDDD = Trace

📥 Download Datasheet

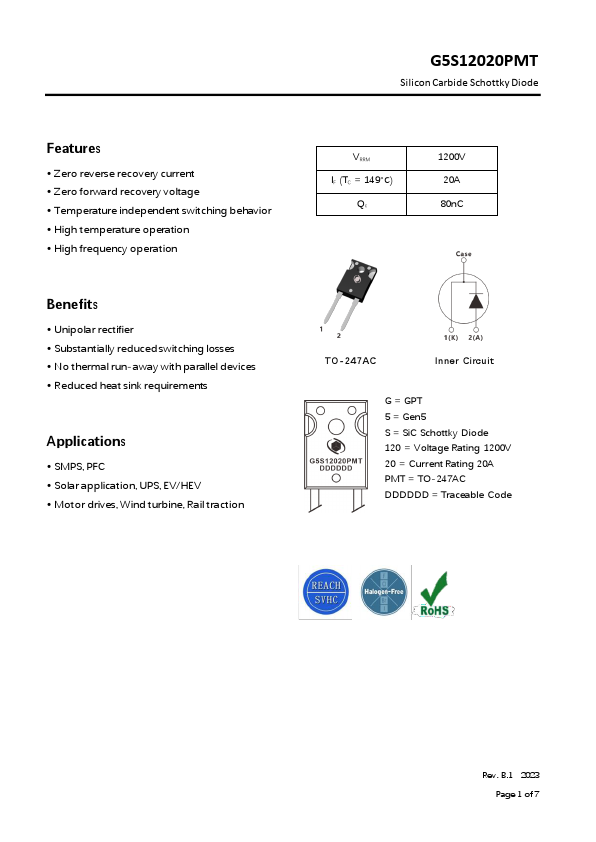

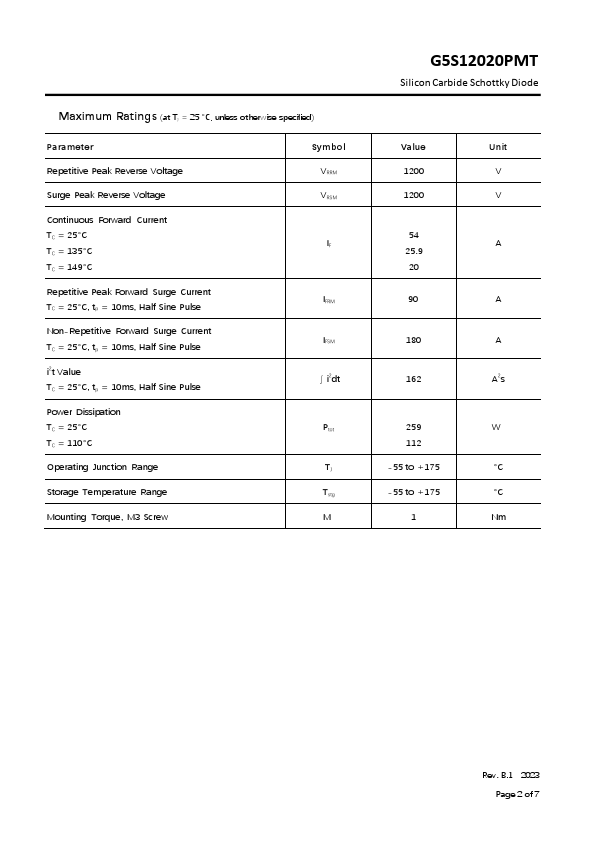

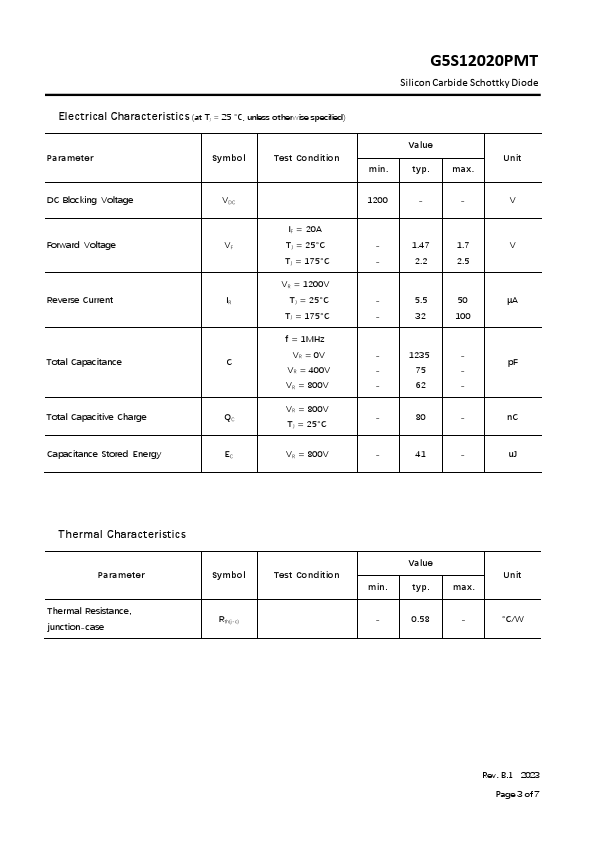

G5S12020PMT Datasheet Preview — Preview of G5S12020PMT PDF

Datasheet Details

Part number: G5S12020PMT
Manufacturer: ETC
File Size: 799.83 KB
Datasheet: G5S12020PMT-ETC.pdf
Description: Silicon Carbide Schottky Diode
