GM7110

1A STEP-DOWN VOLTAGE SWITCHING REGULATOR

GM7110 Features

* 3.3V, 5V, 12V, 15V and Adjustable output versions Adjustable version output voltage range 1.23V to 37V ±4% max over line and load conditions 1A output current Requires Only 4 External Components High Efficiency TTL shutdown capability and low power standby mode Thermal shutdown, current limit protec

GM7110 General Description

GM7110 of regulators provides all the active functions for a stepdown (buck) switching regulator, and drives 1A load with excellent line and load regulation. GM7110 is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and a versatile Adjustable output version. These regulators are simple to .

GM7110 Datasheet (295.06 KB)

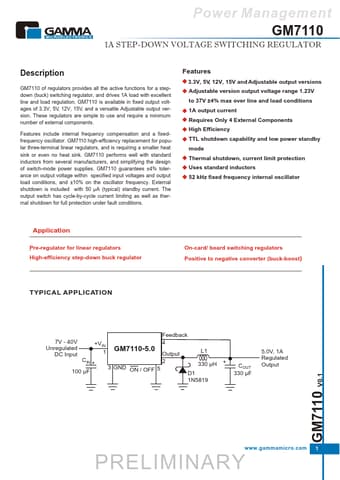

Preview of GM7110 PDF

Datasheet Details

Part number:

GM7110

Manufacturer:

ETC

File Size:

295.06 KB

Description:

1a step-down voltage switching regulator.
