H9014 NPN EPITAXIAL SILICON TRANSISTOR

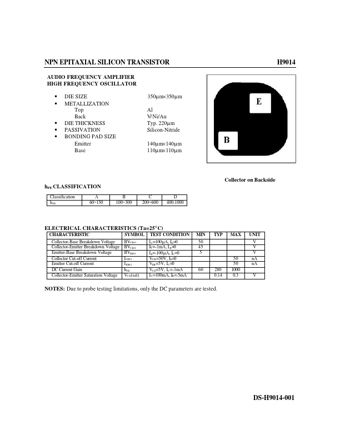

NPN EPITAXIAL SILICON TRANSISTOR AUDIO FREQUENCY AMPLIFIER HIGH FREQUENCY OSCILLATOR DIE SIZE METALLIZATION Top Back DIE THICKNESS PASSIVATION BONDING PAD SIZE Emitter Base 350µm×350µm Al V/ Ni/Au Typ. 220µm Silicon-Nitride 140µm×140µm 110µm×110µm H9014 hFE CLASSIFICATION Classification hFE A 60~150 B 100~300 CD 200~600 400-1000 Collector on Backside ELECTRICAL CHARACTERISTICS (Ta=25°C) CHARACTERISTIC SYMBOL TEST CONDITION Collector-.

H9014-ETC.pdf

H9014 Datasheet Preview — Preview of H9014 PDF

Datasheet Details

Part number:

H9014

Manufacturer:

ETC

File Size:

26.29 KB

Description:

Npn epitaxial silicon transistor.
