HA-1377 Datasheet PDF ((HA-137x/138x) CMOS Compatible Enable/Disable)

HA-1377 - (HA-137x/138x) CMOS Compatible Enable/Disable

This page provides the datasheet information for the HA-1377, a member of the HA-1370 (HA-137x/138x) CMOS Compatible Enable/Disable family.

Description

The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems.

Supplying Pin 1 of the HA-A1370 units with a logic “0" enables the output on Pin 5.

Features

Wide frequency range.
0.5MHz to 20.0MHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
All metal, resistance weld, hermetically sealed package Electrical Connection Pin 1 4 5 8 Connection Enable Input Grd & Case Output VDD.
3.3 Volt operation.
Low Jitter.

Datasheet Details

Part number	HA-1377
Manufacturer	ETC
File Size	389.47 KB
Description	(HA-137x/138x) CMOS Compatible Enable/Disable
Datasheet	HA-1377 Datasheet
Additional preview pages of the HA-1377 datasheet.

📁 Similar Datasheet

HA-1366WR - 5.5W Audio Power Amplifier (Hitachi)

HA-1380 - (HA-138x) Crystal Clock Oscillators (NEL Frequency Controls)

HA-1381 - (HA-138x) Crystal Clock Oscillators (NEL Frequency Controls)

HA-1387 - (HA-138x) Crystal Clock Oscillators (NEL Frequency Controls)

HA-1389 - (HA-138x) Crystal Clock Oscillators (NEL Frequency Controls)

HA-138A - (HA-138x) Crystal Clock Oscillators (NEL Frequency Controls)

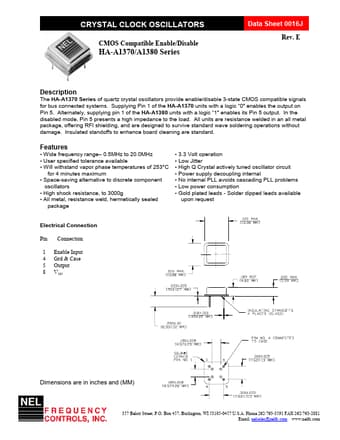

Full PDF Text Transcription

Click to expand full text

CRYSTAL CLOCK OSCILLATORS CMOS Compatible Enable/Disable Data Sheet 0016J Rev. E HA-A1370/A1380 Series Description The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems. Supplying Pin 1 of the HA-A1370 units with a logic “0" enables the output on Pin 5. Alternately, supplying pin 1 of the HA-A1380 units with a logic “1" enables its Pin 5 output. In the disabled mode, Pin 5 presents a high impedance to the load. All units are resistance welded in an all metal package, offering RFI shielding, and are designed to survive standard wave soldering operations without damage. Insulated standoffs to enhance board cleaning are standard. Features • Wide frequency range– 0.5MHz to 20.
