HD29050 - Dual Differential Line Drivers / ReceiversWith 3 State Outputs

HD29050 Description

HD29050 www.DataSheet4U.com Dual Differential Line Drivers / ReceiversWith 3 State Outputs The HD29050 .

HD29050 Features

* differential line drivers / receivers with three state output designed to meet the spec of EIA RS
* 422A and 423A. Each device has two drivers / receivers in a 16 pin package. The device becomes in enable state when active high for a driver and active low for a receiver. Pin Arrangement R1B

📥 Download Datasheet

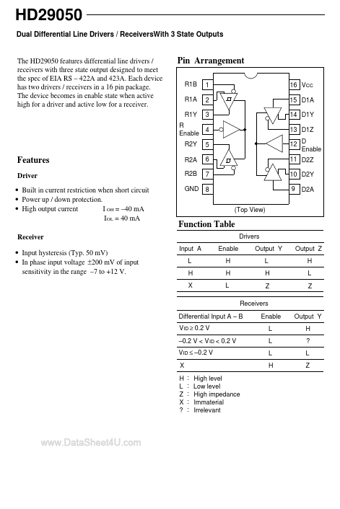

Preview of HD29050 PDF
