HRAH-S-DC5V Datasheet - ETC

HRAH-S-DC5V Relay

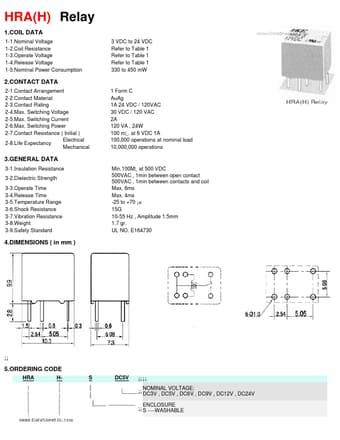

HRA(H) Relay 1.COIL DATA 1-1.Nominal Voltage 1-2.Coil Resistance 1-3.Operate Voltage 1-4.Release Voltage 1-5.Nominal Power Consumption 3 VDC to 24 VDC Refer to Table 1 Refer to Table 1 Refer to Table 1 330 to 450 mW www.DataSheet4U.com 2.CONTACT DATA 2-1.Contact Arrangement 2-2.Contact Material 2-3.Contact Rating 2-4.Max. Switching Voltage 2-5.Max. Switching Current 2-6.Max. Switching Power 2-7.Contact Resistance ( Initial ) Electrical 2-8.Life Expectancy Mechanical 1 Form C AuAg 1A 24 VDC / 12.

HRAH-S-DC5V Datasheet (80.51 KB)
