ICR-1865026F-J129 Datasheet - ETC

ICR-1865026F-J129 Rechargeable Lithium Ion Battery

ICR-18650 26F-J129 Rechargeable Lithium Ion Battery with PCM Data Sheet1 Basic Cell Configuration ICR-18650 26F 1s Dimensions [mm] Length (L) Width (W) Weight, approx. [g] Max.71 Max.19.5 50 Contacts Wires AWG24 UL1007 red = + black = - Electrical Parameter Nominal Values [V] / [Wh] Typical capacity [mAh] Minimum capacity C [mAh] Impedance initial [m] 3.7 2600 (0.2C at 20°C after 4.2V) 2500 (0.2C at 20°C after 4.2V) < 150 @ 1kHz at 4.2V Max. Charge [mA] Max. Charge Voltage [V] Max. co.

ICR-1865026F-J129-ETC.pdf

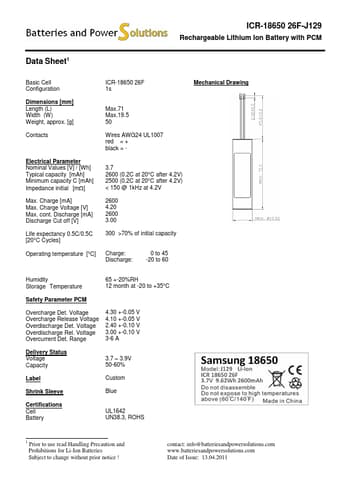

Preview of ICR-1865026F-J129 PDF

Datasheet Details

Part number:

ICR-1865026F-J129

Manufacturer:

ETC

File Size:

134.30 KB

Description:

Rechargeable lithium ion battery.
