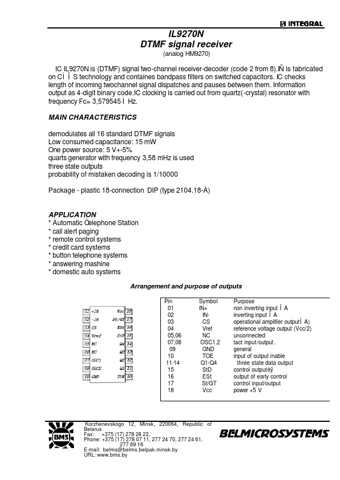

IL9270N
IL9270N DTMF signal receiver
(analog HM9270)
IC IL9270N is (DTMF) signal two-channel receiver-decoder (code 2 from 8).IÑ is fabricated on CÌÎS technology and containes bandpass filters on switched capacitors. IC checks length of ining twochannel signal dispatches and pauses between them. Information output as 4-digit binary code.IC clocking is carried out from quartz(-crystal) resonator with frequency Fc= 3,579545 ÌHz. MAIN CHARACTERISTICS demodulates all 16 standard DTMF signals Low consumed capacitance: 15 m W One power source: 5 V+-5% quarts generator with frequency 3,58 m Hz is used three state outputs probability of mistaken decoding is 1/10000 Package
- plastic 18-connection DIP (type 2104.18-À)
APPLICATION
- Àutomatic Òelephone Station
- call alert paging
- remote control systems
- credit card systems
- button telephone systems
- answering mashine
- domestic auto systems
Arrangement and purpose of outputs
Pin 01 02 03 04 05,06 07,08 09 10 11- 14 15 16 17 18 Symbol IN+ INCS Vref...
