IP9011, 6-CH Motor Drive IC

IP9011 6-CH Motor Drive IC .
IP9011 is a 6-CH motor driver.

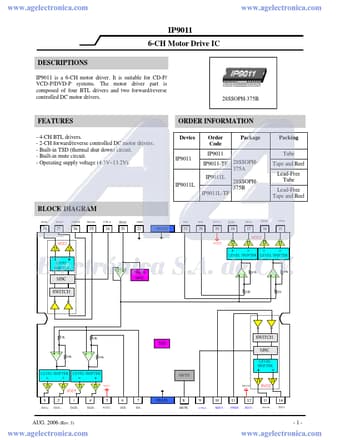

datasheet Preview Page 1 from Datasheet4u.com

IP9011-ETC.pdf

IP9011 Datasheet Preview — Preview of IP9011 PDF

Datasheet Details

Part number:

IP9011

Manufacturer:

ETC

File Size:

722.01 KB

Description:

6-CH Motor Drive IC

Features

* - 4-CH BTL drivers. - 2-CH forward/reverse controlled DC motor drivers. - Built-in TSD (thermal shut down) circuit. - Built-in mute circuit. - Operating supply voltage (4.3V~13.2V). BLOCK DIAGRAM ORDER INFORMATION Device Order Code Package IP9011 IP9011L IP9011 IP9011-TF 28SSOPH375A IP9011L 28
