® ISD1000A Series Single-Chip Voice Record/Playback Devices 16- and 20-Second Durations .
Information Storage Devices’ ISD1000A ChipCorder® Series provides high-quality, single-chip record/playback solutions for 16- and 20-second messaging.

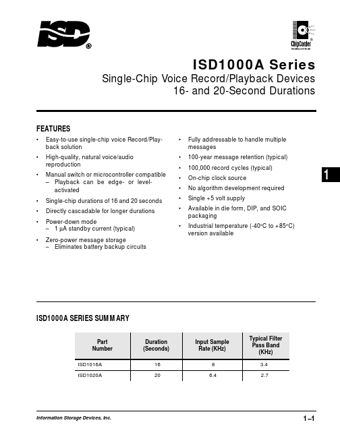

datasheet Preview Page 1 from Datasheet4u.com

ISD-1000.pdf

ISD1020AP Datasheet Preview — This datasheet PDF includes multiple part numbers: ISD1020AP, ISD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISD1020AP, ISD

Manufacturer:

ETC

File Size:

402.47 KB

Description:

Single-Chip Voice Record/Playback Devices 16- and 20-Second Durations

Note:

This datasheet PDF includes multiple part numbers: ISD1020AP, ISD.
Please refer to the document for exact specifications by model.

Features

* Easy-to-use single-chip voice Record/Playback solution High-quality, natural voice/audio reproduction Manual switch or microcontroller compatible
* Playback can be edge- or levelactivated Single-chip durations of 16 and 20 seconds Directly cascadable for longer

Applications

* The CMOS devices include an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, and speaker amplifier. In addition, the ISD1000A Series is fully microprocessorcompatible, allowing complex messaging and addressing to be achieved. Recordings are
