ITM1010EV45 - CDMA Cellular/CDMA450 Receiver RF Front-end IC

📥 Download Datasheet

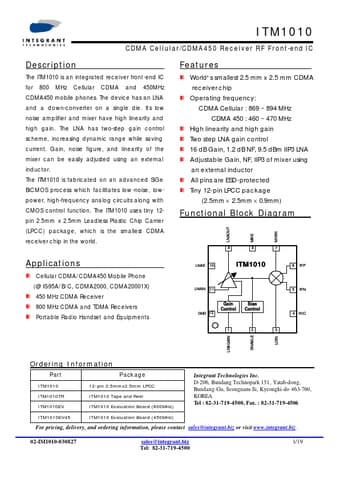

ITM1010EV45 Datasheet Preview — Preview of ITM1010EV45 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ITM1010EV45
Manufacturer: ETC
File Size: 629.03 KB
Datasheet: ITM1010EV45_ETC.pdf
Description: CDMA Cellular/CDMA450 Receiver RF Front-end IC

ITM1010EV45 Product details

Description

The ITM1010 is an integrated receiver front-end IC for 800 MHz Cellular CDMA and 450MHz CDMA450 mobile phones.

Features

World’ s smallest 2.5 mm x 2.5 mm CDMA receiver chip Operating frequency: CDMA Cellular : 869 ~ 894 MHz CDMA 450 : 460 ~ 470 MHz High linearity and high gain Two step LNA gain control 16 dB Gain, 1.2 dB NF, 9.5 dBm IIP3 LNA Adjustable Gain, NF, IIP3 of mixer using an external inductor All pins are ESD-protected Tiny 12-pin LPCC package (2.5mm × 2.5mm × 0.9mm) Functional Block Diagram LNAOUT MIXE MIXIN 7 9 8.
