JKS25B Dissolved Oxygen Sensor

www.DataSheet4U.com Specifications of the Dissolved Oxygen Sensor JKS25B 1. Scope This specification applies to the dissolved oxygen sensor, model JKS25B. 2. Appearance and Dimensions Appearance and dimensions of the JKS25B sensor as per attached drawing No. 90DO-09B. 3. Specification Output Voltage in air: 5.6mV～15.0mV under the conditions of 1013±5hPa，60±5％RH, and 25±1℃. 4. Characteristicsddfda4± 4-1. Oxygen Concentration-Output Voltage Characteristics(Linearity). ±5％/Full scale at the water.

JKS25B Datasheet (203.67 KB)

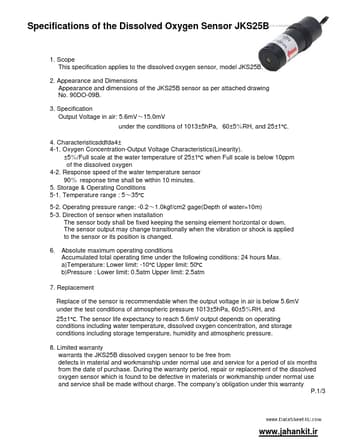

Preview of JKS25B PDF

Datasheet Details

Part number:

JKS25B

Manufacturer:

ETC

File Size:

203.67 KB

Description:

Dissolved oxygen sensor.
