JNR-10D180K - METAL OXIDE VARISTOR

This page provides the datasheet information for the JNR-10D180K, a member of the JNR-5D180K METAL OXIDE VARISTOR family.

📥 Download Datasheet

Datasheet preview – JNR-10D180K

Datasheet Details

Part number JNR-10D180K
Manufacturer ETC
File Size 363.53 KB
Description METAL OXIDE VARISTOR
Datasheet download datasheet JNR-10D180K Datasheet

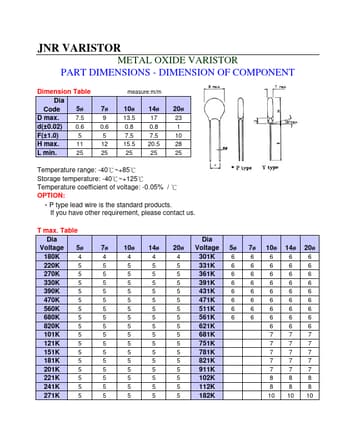

Additional preview pages of the JNR-10D180K datasheet.

📁 Similar Datasheet

Other Datasheets by ETC

Full PDF Text Transcription

Click to expand full text
JNR VARISTOR METAL OXIDE VARISTOR PART DIMENSIONS - DIMENSION OF COMPONENT measure:m/m Dimension Table Dia 5ø Code 7.5 D max. 0.6 d(±0.02) 5 F(±1.0) 11 H max. 25 L min. 7ø 9 0.6 5 12 25 10ø 13.5 0.8 7.5 15.5 25 14ø 17 0.8 7.5 20.5 25 20ø 23 1 10 28 25 Temperature range: -40:~+85: Storage temperature: -40:~+125: Temperature coefficient of voltage: -0.05% / : OPTION: bP type lead wire is the standard products. If you have other requirement, please contact us. T max. Table Dia 5ø Voltage 4 180K 5 220K 5 270K 5 330K 5 390K 5 470K 5 560K 5 680K 5 820K 5 101K 5 121K 5 151K 5 181K 5 201K 5 221K 5 241K 5 271K 7ø 4 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 10ø 4 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 14ø 4 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 20ø 4 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 www.DataSheet.co.
