JNR-20D270K Datasheet - ETC

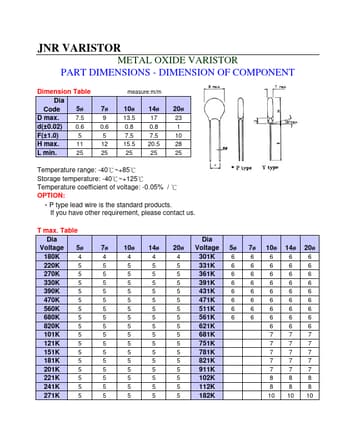

JNR VARISTOR METAL OXIDE VARISTOR PART DIMENSIONS - DIMENSION OF COMPONENT measure:m/m Dimension Table Dia 5ø Code 7.5 D max. 0.6 d(±0.02) 5 F(±1.0) 11 H max. 25 L min. 7ø 9 0.6 5 12 25 10ø 13.5 0.8 7.5 15.5 25 14ø 17 0.8 7.5 20.5 25 20ø 23 1 10 28 25 Temperature range: -40:~+85: Storage temperature: -40:~+125: Temperature coefficient of voltage: -0.05% / : OPTION: bP type lead wire is the standard products. If you have other requirement, please contact us. T max. Table Dia 5ø Voltage 4 1.

JNR-20D270K Datasheet (363.53 KB)
