JY01

brushless DC motor controller

JY01 Features

* JY01 is special designed control IC for brushless DC motor driver, applied to Hall sensor BLDC motor or sensorless BLDC motor, its easy to application, peripheral circuit is simple, low costs, SPWM drive mode with low noise, high efficiency, stable quality and professional technical support, JY01 ha

JY01 General Description

JY01 B543024802345 Pin Name Function Remark 1 Brak brake control 2 Is Current signal feedback input Input 0 V-2.5V or 0 V - 5.0V Overload protect :0.1V 3 Vss Power negative pole 0V 0V 4 Vdd Power positive pole 5V 5V 5 Z/F CW or CCW control connect Vss or Vdd 6 M speed sign.

JY01 Datasheet (1.57 MB)

Preview of JY01 PDF

Datasheet Details

Part number:

JY01

Manufacturer:

ETC

File Size:

1.57 MB

Description:

Brushless dc motor controller.

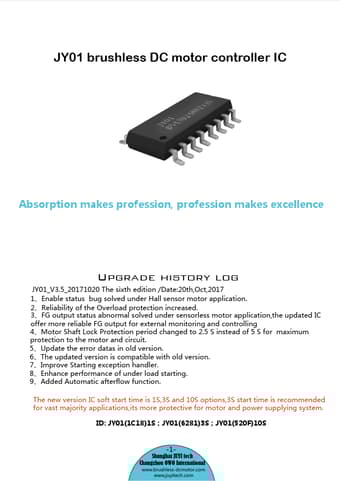

® JY01 brushless DC motor controller IC Absorption makes profession, profession makes excellence Upgrade history log JY01_V3.5_20171020 The sixth edit.
