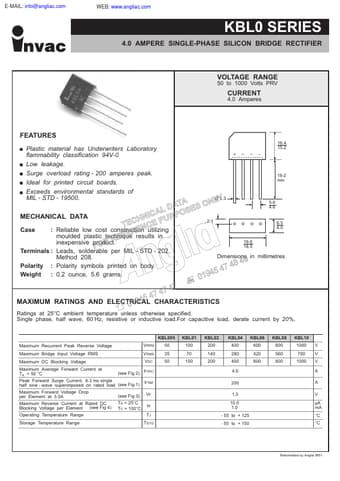

KBL0
FEATURES
Plastic material has Underwriters Laboratory flammability classification 94V-0 Low leakage. Surge overload rating
- 200 amperes peak. Ideal for printed circuit boards. Exceeds environmental standards of MIL
- STD
- 19500.
+ ~ ~ ± 16.4 15.2
19.0 min
Ø 1.3
5.6 4.6 6.5 6.0 19.6 18.5
MECHANICAL DATA
Case : : : Terminals : : Polarity : Weight : Reliable low cost construction utilizing moulded plastic technique results in inexpensive product. Leads, solderable per MIL
- STD
- 202, Method 208. Polarity symbols printed on body. 0.2 ounce, 5.6 grams.
Dimensions in millimetres
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.
KBL005 Maximum Recurrent Peak Reverse Voltage Maximum Bridge Input Voltage RMS Maximum DC Blocking Voltage VRRM VRMS VDC 50 35 50 KBL01 100 70 100 KBL02 200 140 200 KBL04 400 280 400 4.0 200...
