L1581D-2.5 Dual Input Ultra Low Dropout Voltage Regulator (ULDO)

Description

NIKO-SEM Dual Input Ultra Low Dropout Voltage Regulator (ULDO) .
The L1581 is a positive and very low dropout voltage regulator with 5A output current capability.

📥 Download Datasheet

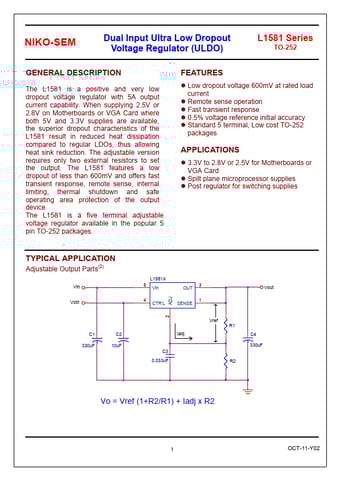

L1581D-2.5 Datasheet Preview — Preview of L1581D-2.5 PDF

Datasheet Specifications

Part number: L1581D-2.5
Manufacturer: ETC
File Size: 116.56 KB
Datasheet: L1581D-2.5_ETC.pdf
Description: Dual Input Ultra Low Dropout Voltage Regulator (ULDO)

Applications

* z 3.3V to 2.8V or 2.5V for Motherboards or VGA Card z Spilt plane microprocessor supplies z Post regulator for switching supplies TYPICAL APPLICATION Adjustable Output Parts(2) L1581X Vin Vctrl 5 4 Vin ADJ CTR'L OUT SENSE 3 1 Vout 2 Vref R1 C1 330uF C2 10uF C3 0.033uF R2 Iadj C4 330uF Vo = Vref
