LC2021-BMDWH6-R1 - LCD Module

Product Overview

Part number	LC2021-BMDWH6-R1
Manufacturer	ETC
File Size	378.26 KB
Description	LCD Module
Datasheet	LC2021-BMDWH6-R1 Datasheet

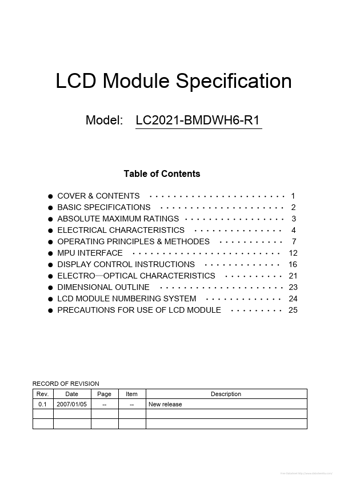

Additional preview pages of the LC2021-BMDWH6-R1 datasheet.

Free Datasheet http://www.datasheet4u.com/ Document Name: LC2021-BMDWH6-R1 Rev0.1 -2- 1. BASIC SPECIFICATIONS 1.1

Display Format LCD Mode : : 20 Characters X 2 Lines STN－Blue－Negative－Transmissive 1/16 Duty, 1/4 Bias 6:00 LED, white color 116.0(W) X 37.0(H) X 13.5(T) mm 83.0(W) X 18.6(H) mm 3.20 X 5.55 mm 0.60 X 0.65 mm 55 g S6A0069 (KS066U) or equivalent 3.0 to 5.0V for logic, 3.1 to 5.0V for LED backlight Driving Method : Viewing Direction : Backlight : Outline Dimension : Viewing Area : Character Size : Dot Size : Weight : Controller : Power supply : 1.2 Block Diagram VSS VDD VO RS R/W E DB0 DB7 LCD.
