LE507

Class A Output Stage with Input Biasing

LE507 Features

* 76 dB of gain

* internal DC bias for I/P stage

* applications include AF output stages, hearing aids and RF amplifiers

* total harmonic distortion 1% (typical) STANDARD PACKAGING

* 8 pin PLID ®

* 8 pin DIP For ␣ more application information refer to

LE507 General Description

The LE507 is a low voltage class A amplifier design, primarily for low voltage and low power use. The broad application include AF output stages, RF amplifiers and output stages of the hearing instruments. The circuit is comprised of three stages all of them having access to their collectors for fre.

LE507 Datasheet (66.02 KB)

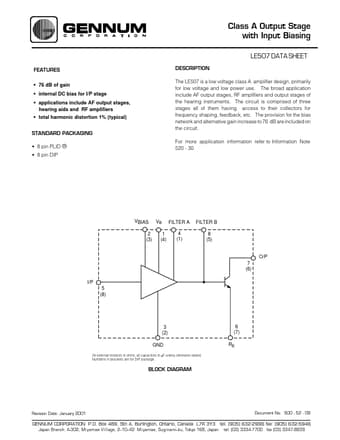

LE507 Datasheet Preview — Preview of LE507 PDF

Datasheet Details

Part number:

LE507

Manufacturer:

ETC

File Size:

66.02 KB

Description:

Class a output stage with input biasing.
