LMC-STC2A16 (LMC-SSC2A16 / LMC-STC2A16) 16 Characters LCD

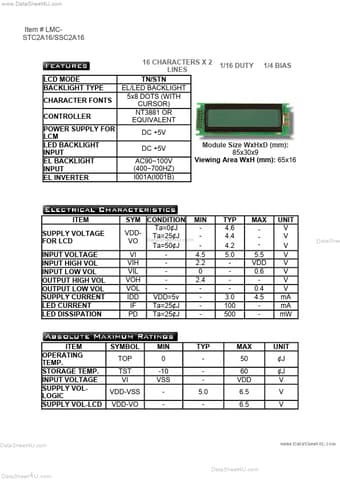

www.DataSheet4U.com Item # LMCSTC2A16/SSC2A16 16 CHARACTERS X 2 LINES TN/STN EL/LED BACKLIGHT 5x8 DOTS (WITH CURSOR) NT3881 OR EQUIVALENT DC +5V DC +5V AC90~100V (400~700HZ) I001A(I001B) Module Size WxHxD (mm): 85x30x9 Viewing Area WxH (mm): 65x16 1/16 DUTY 1/4 BIAS LCD MODE BACKLIGHT TYPE CHARACTER FONTS CONTROLLER POWER SUPPLY FOR LCM LED BACKLIGHT INPUT EL BACKLIGHT INPUT EL INVERTER ITEM SUPPLY VOLTAGE FOR LCD INPUT VOLTAGE INPUT HIGH VOL INPUT LOW VOL OUTPUT HIGH VOL OUTPUT LOW VOL SUP.

LMC-SSC2A16_ETC.pdf

LMC-STC2A16 Datasheet Preview — This datasheet PDF includes multiple part numbers: LMC-STC2A16, LMC-SSC2A16. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMC-STC2A16, LMC-SSC2A16

Manufacturer:

ETC

File Size:

269.36 KB

Description:

(lmc-ssc2a16 / lmc-stc2a16) 16 characters lcd.

Note:

This datasheet PDF includes multiple part numbers: LMC-STC2A16, LMC-SSC2A16.
Please refer to the document for exact specifications by model.
