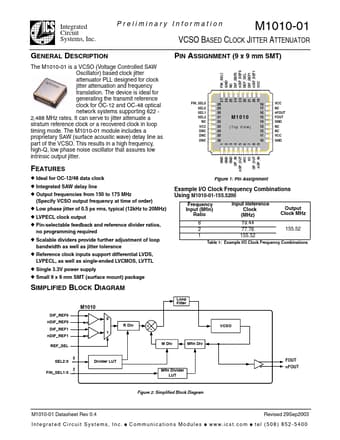

M1010-01
DESCRIPTION
The M1010-01 is a VCSO (Voltage Controlled SAW Oscillator) based clock jitter attenuator PLL designed for clock jitter attenuation and frequency translation. The device is ideal for generating the transmit reference clock for OC-12 and OC-48 optical network systems supporting 622 2,488 MHz rates. It can serve to jitter attenuate a stratum reference clock or a recovered clock in loop timing mode. The M1010-01 module includes a proprietary SAW (surface acoustic wave) delay line as part of the VCSO. This results in a high frequency, high-Q, low phase noise oscillator that assures low intrinsic output jitter.
28 29 30 31 32 33 34 35 36
M1010
(Top View)
18 17 16 15 14 13 12 11 10
VCC NC n FOUT FOUT GND NC NC VCC GND
FEATURES
- Ideal for OC-12/48 data clock
- Integrated SAW delay line
- Output frequencies from 150 to 175 MHz (Specify VCSO output frequency at time of order)
- Low phase jitter of 0.5 ps rms, typical (12k Hz to 20MHz)
- LVPECL clock output
- Pin-selectable...
