M5207L01 LINEAR CONTROL DUAL VOLTAGE CONTROLLED AMP

M5207L01 Description

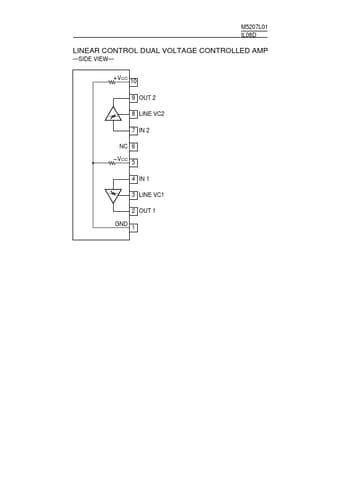

M5207L01 IL08D LINEAR CONTROL DUAL VOLTAGE CONTROLLED AMP *SIDE VIEW * +VCC 10 9 OUT 2 8 LINE VC2 7 IN 2 NC 6 _VCC 5 4 IN 1 3 LINE VC1 .

📥 Download Datasheet

Preview of M5207L01 PDF

Datasheet Details

Part number
M5207L01
Manufacturer
ETC
File Size
8.84 KB
Datasheet
M5207L01-ETC.pdf
Description
LINEAR CONTROL DUAL VOLTAGE CONTROLLED AMP
