MBR240 - SCHOTTKY DIE SPECIFICATION

📥 Download Datasheet

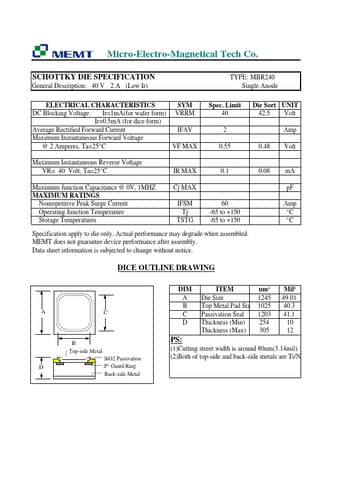

Preview of MBR240 PDF

Datasheet Details

Part number MBR240
Manufacturer ETC
File Size 11.17 KB
Description SCHOTTKY DIE SPECIFICATION
Datasheet download datasheet MBR240_ETC.pdf

MBR240 Product details

Description

40 V 2 A (Low Ir) ELECTRICAL CHARACTERISTICS SYM DC Blocking Voltage: Ir=1mA(for wafer form) VRRM Ir=0.5mA (for dice form) Average Rectified Forward Current IFAV Maximum Instantaneous Forward Voltage @ 2 Amperes, Ta=25°C VF MAX Maximum Instantaneous Reverse Voltage VR= 40 Volt, Ta=25°C Maximum Junction Capacitance @ 0V, 1MHZ MAXIMUM RATINGS Nonrepetitive Peak Surge Current Operating Junction Temperature Storage Temperatures TYPE: MBR240 Single Anode Spec.
