MC117 - Very high stability moulded coil

MC117 Description

MC117 Series Technical Specification Inductance Range : Frequency Range : 0.02uH - 0.40uH 30MHz - 150MHz .

MC117 Features

* The MC117 is a very high stability coil based on the dimensions of the MC120 moulded coil, although being taller it is designed for a space wound coil, with an optional tap encapsulated within the moulding of the coil assembly.
* Adjustment is possible from either end.
* T

MC117 Applications

* requiring optimum Q characteristics at VHF, is space wound on a hexagonal core.
* The MC117 is only available as a single winding c

📥 Download Datasheet

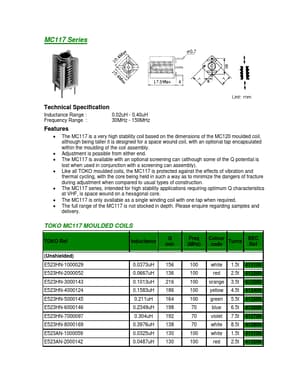

Preview of MC117 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MC117
Manufacturer
ETC
File Size
53.49 KB
Datasheet
MC117-ETC.pdf
Description
Very high stability moulded coil
