MCL20, MCL25 Datasheet - ETC

MCL20 (MCL1 - MCL50) Edison Fuses - General Purpose Midget Class MCL

These panel-mount fuse blocks are for use with Class CC Fuses (Edison EDCC, HCTR and HCLR). Specifications Terminal type: Pressure plate with quick disconnect Base: Thermoplastic Clips: Bright tin-plated bronze UL Flammability: 94V0 Ratings: 600 VAC, 30 Amps Agency Approvals * UL listed to.

MCL20 Features

* Provide supplemental protection to end-use equipment

* Compact dimensions

* High interrupting rating

* Fast-acting design responds quickly to both overloads and short-circuit current MCL Specifications Fast-Acting Voltage Rating: MCL - 600 VAC Ampere Rating: 0.5 -

MCL25_ETC.pdf

This datasheet PDF includes multiple part numbers: MCL20, MCL25. Please refer to the document for exact specifications by model.

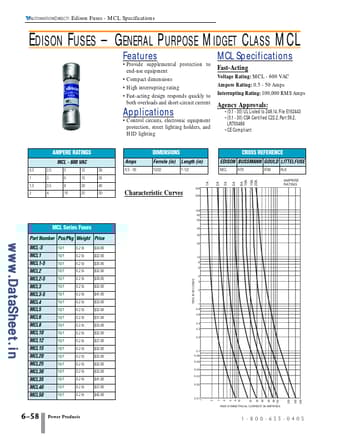

MCL20 Datasheet Preview Page 2 MCL20 Datasheet Preview Page 3

Datasheet Details

Part number:

MCL20, MCL25

Manufacturer:

ETC

File Size:

560.97 KB

Description:

(mcl1 - mcl50) edison fuses - general purpose midget class mcl.

Note:

This datasheet PDF includes multiple part numbers: MCL20, MCL25.
Please refer to the document for exact specifications by model.
