Datasheet Details
- Part number
- MHB4-10-25
- Manufacturer
- ETC
- File Size
- 12.80 KB
- Datasheet
-
MHB4-10-25-ETC.pdf
- Description

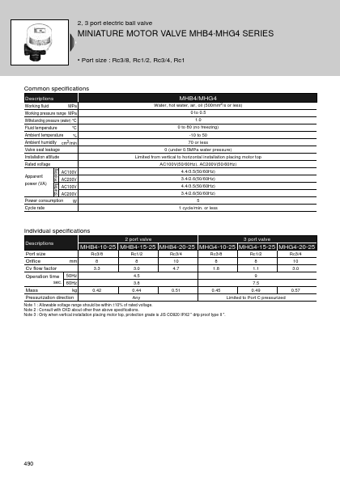

- MINIATURE MOTOR VALVE
MHB4-10-25-ETC.pdf
Working fluid MPa Working pressure range MPa Withstanding pressure (water) °C Fluid temperature °C Ambient temperature % Ambient humidity cm3/min Valve seat leakage Installation attitude Rated voltage Starting Holding Apparent power (VA) AC100V AC200V AC100V AC200V Power consumption W Cycle rate MHB4/MHG4 Water, hot water, air, oil (500mm2/s or less) 0 to 0.5 1.0 0 to 80 (no freezing) -10 to 50 70 or less 0 (under 0.5MPa water pressure) Limited from vertical to horizontal instal
