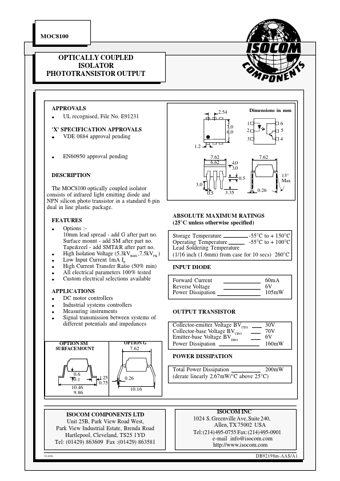

MOC8100, OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR

MOC8100 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT APPROVALS l UL recognised, File No.E91231 'X' SPECIFICATION APPROVALS l VDE 0884 approval.
The MOC8100 optically coupled isolator consists of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line pla.

datasheet Preview Page 1 from Datasheet4u.com

MOC8100_ETC.pdf

MOC8100 Datasheet Preview — Preview of MOC8100 PDF

Datasheet Details

Part number:

MOC8100

Manufacturer:

ETC

File Size:

55.80 KB

Description:

OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR

Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Low Input Current 1mA IF l High Current Transfer Ratio (50% min) l All electrical parameters 100% tested l Custom electrical s

Applications

* l DC motor controllers l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances 3.0 0.5 3.35 ABSOLUTE MAXIMUM RATINGS (25°C unless otherwise specified) Storage Temperature -55°C to + 150°C Operating Temperature -55°C to +
