MS3201 - 115.2 kbps infrared transceiver module

Product Overview

Datasheet Details

Part number	MS3201
Manufacturer	ETC
File Size	557.64 KB
Description	115.2 kbps infrared transceiver module
Datasheet	MS3201 Datasheet

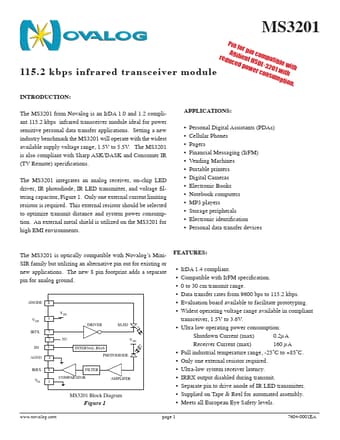

Additional preview pages of the MS3201 datasheet.

Product details

Description

Pin 1 2 3 4 5 6 7 8 Mnemonic VSS NC VDD VSSA SD IRRXʼ IRTX Anode Function Ground No Connection Supply Voltage Analog Ground Shutdown IR Receiver Output IR Transmitter Input Transmitter LED Anode I/O I O I I O I I Active High Low High - Absolute Maximum Ratings: Voltage, Any Input -0.3V to +6.0V Operating Temperature Range -25˚C to +85˚C Storage Temperature Range -30˚C to +90˚C Stress beyond ‘Absolute Maximum Ratings’ may cause damage to the device.These are stress ratings only, no operation

Features

IrDA 1.4 compliant. Compatible with IrFM specification. 0 to 30 cm transmit range. Data transfer rates from 9600 bps to 115.2 kbps. Evaluation board available to facilitate prototyping. Widest operating voltage range available in compliant transceiver, 1.5V to 3.6V. Ultra low operating power consumption: Shutdown Current (max) 0.2µA Receiver Current (max) 160 µA Full industrial temperature range, -25˚C to +85˚C. Only one exte.
