NT512D64S8HB1GY, NT512D64S8HB0G, 184 pin Unbuffered DDR DIMM

NT512D64S8HB1G / NT512D64S8HB1GY / NT512D64S8HB0G NT256D64S88B1G / NT256D64S88B1GY NT256D64S88B0G NT128D64SH4B1G / NT512D72S8PB0G (ECC) / NT256D72S89B.
NT512D64S8HB0G, NT512D64S8HB1G, NT512D64S8HB1GY, NT512D72S8PB0G, NT256D64SH88B0G, NT256D64SH88B1G, NT256D64SH88B1GY, NT256D72S89B0G and NT128D64SH4B1G.

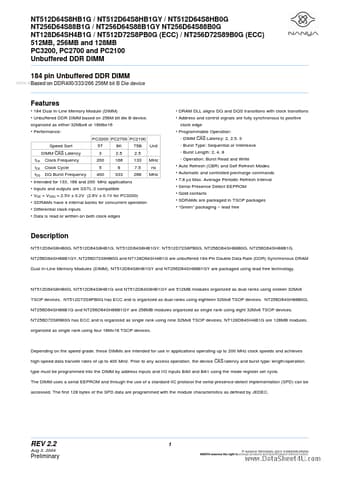

datasheet Preview Page 1 from Datasheet4u.com

NT512D64S8HB0G_ETC.pdf

NT512D64S8HB1GY Datasheet Preview — This datasheet PDF includes multiple part numbers: NT512D64S8HB1GY, NT512D64S8HB0G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NT512D64S8HB1GY, NT512D64S8HB0G

Manufacturer:

ETC

File Size:

411.74 KB

Description:

184 pin Unbuffered DDR DIMM

Note:

This datasheet PDF includes multiple part numbers: NT512D64S8HB1GY, NT512D64S8HB0G.
Please refer to the document for exact specifications by model.

Features

* 184 Dual In-Line Memory Module (DIMM)
* Unbuffered DDR DIMM based on 256M bit die B device, organized as either 32Mbx8 or 16Mbx16
* Performance: PC3200 PC2700 PC2100 Speed Sort DIMM CAS Latency fCK tCK Clock Frequency Clock Cycle 5T 3 200 5 400 6K 2.5 166 6 333 75B 2.5 133

Applications

* Inputs and outputs are SSTL-2 compatible
* VDD = VDDQ = 2.5V ± 0.2V (2.6V ± 0.1V for PC3200)
* SDRAMs have 4 internal banks for concurrent operation
* Differential clock inputs
