OTQ-112-0.65-02, OTQ Datasheet - ETC

OTQ-112-0.65-02 OPEN TOP TYPE SOCKETS

www.DataSheet4U.com QFP QUAD FLAT PACKAGE Applicable IC/QFP TQFP OPEN TOP TYPE SOCKETS ORDERING PROCEDURE OTQ - - Design NO. Pitch Pin Count Socket Series SPECIFICATIONS Contact resistance: Initial 100m Ω (At 10mA) Maximum voltage: AC700V RMS (for 1 minute) Below 0.5mm Pitch AC500V RMS (for 1 minute) Insulation resistance: 1,000M Ω or higher (At DC 500V) Rated current: 1A Operating temperature range: -60°C ~ +150°C Terminal strength against pulling: 0.5kg (1 minute) Insertion.

OTQ_ETC.pdf

This datasheet PDF includes multiple part numbers: OTQ-112-0.65-02, OTQ. Please refer to the document for exact specifications by model.

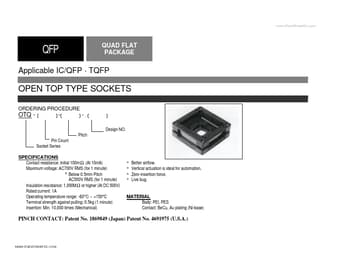

OTQ-112-0.65-02 Datasheet Preview Page 2 OTQ-112-0.65-02 Datasheet Preview Page 3

Datasheet Details

Part number:

OTQ-112-0.65-02, OTQ

Manufacturer:

ETC

File Size:

125.18 KB

Description:

Open top type sockets.

Note:

This datasheet PDF includes multiple part numbers: OTQ-112-0.65-02, OTQ.
Please refer to the document for exact specifications by model.
