OV7620 - OV7620 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA

Description

OV7620 is a highly integrated high resolution (640x480) Interlaced / Progressive Scan CMOS digital color / black&white video camera chip.

The digital video port supports 60Hz YCrCb 4:2:2 16Bit / 8 Bit format, ZV Port output format, RGB raw data 16Bit/8Bit output format and CCIR601/CCIR656 format.

Features

  • 326,688 pixels, 1/3” lens, VGA / QVGA format.
  • Read out - progressive / Interlace.
  • Data format - YCrCb 4:2:2, GRB 4:2:2, RGB Raw Data.
  • 8/16 bit video data: CCIR601, CCIR656, ZV port.
  • Video Timing - 525 line, 30 fps.
  • Wide dynamic range, anti-blooming, zero smearing.
  • SCCB (Serial Camera Control Bus) interface.
  • Electronic exposure / Gain / white balance control.
  • Image enhancement - brightness, contrast, gamma, saturati.

📥 Download Datasheet

Datasheet Details

Part number OV7620
Manufacturer Unknown Manufacturer
File Size 313.18 KB
Description OV7620 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA
Datasheet download datasheet OV7620 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OV7604C7 CMOS Oscillator Low Power Golledge Electronics
OV7605C8 Low Power Fully Ceramic 32.768kHz SM Oscillator Golledge
OV7640 (OV7140) Color CMOS VGA Camera Chip OmniVision
OV7640 (OV7141 / OV7640) B/w Vga 640 X 480 Digital CMOS Camerachipstm OmniVision Technologies
OV7650 (OV7650 / OV7151) CMOS VGA OmniVision

Other Datasheets by Unknown Manufacturer

Part Number Description
OV7725 Camera Module
OV7910 SINGLE-CHIP CMOS COLOR PAL CAMERA

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

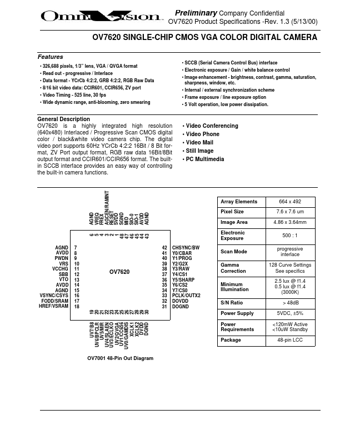

Preliminary Company Confidential OV7620 Product Specifications -Rev. 1.3 (5/13/00) OV7620 SINGLE-CHIP CMOS VGA COLOR DIGITAL CAMERA Features • 326,688 pixels, 1/3” lens, VGA / QVGA format • Read out - progressive / Interlace • Data format - YCrCb 4:2:2, GRB 4:2:2, RGB Raw Data • 8/16 bit video data: CCIR601, CCIR656, ZV port • Video Timing - 525 line, 30 fps • Wide dynamic range, anti-blooming, zero smearing • SCCB (Serial Camera Control Bus) interface • Electronic exposure / Gain / white balance control • Image enhancement - brightness, contrast, gamma, saturation, sharpness, window, etc. • Internal / external synchronization scheme • Frame exposure / line exposure option • 5 Volt operation, low power dissipation.
