OX16C954

High Performance Quad UART with 128-byte FIFOs Intel / Motorola Bus Interface

OX16C954 Features

* Four independent full-duplex asynchronous 16C950 high performance UART channels 128-byte deep FIFO per transmitter and receiver UARTs fully software compatible with industry standard 16C55x type UARTs

OX16C954 General Description

The OX16C954 is a single chip solution for 4 channel serial add-in cards. Each UART channel in the OX16C954 offers data rates up to 15Mbps and 128-byte deep transmitter and receiver FIFOs. Deep FIFOs reduce CPU overhead and allow utilisation of higher data rates. Each UART channel is software compat.

OX16C954 Datasheet (529.15 KB)

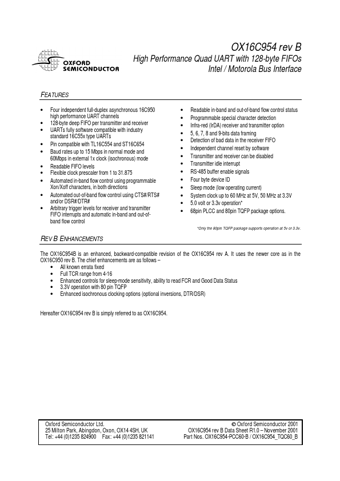

OX16C954 Datasheet Preview — Preview of OX16C954 PDF

Datasheet Details

Part number:

OX16C954

Manufacturer:

ETC

File Size:

529.15 KB

Description:

High performance quad uart with 128-byte fifos intel / motorola bus interface.
