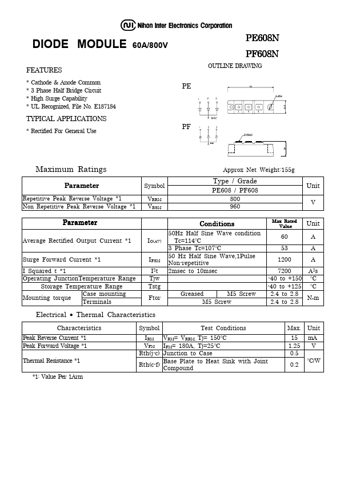

PF608N
FEATURES
- Cathode & Anode mon
- 3 Phase Half Bridge Circuit
- High Surge Capability
- UL Recognized, File No. E187184
TYPICAL APPLICATIONS
- Rectified For General Use
PE PF
PE608N
OUTLINE DRAWING
Maximum Ratings
Parameter
Repetitive Peak Reverse Voltage
- 1 Non Repetitive Peak Reverse Voltage
- 1
Symbol
VRRM VRSM
Approx Net Weight:155g
Type / Grade PE608 / PF608
800 960
Unit V
Parameter
Average Rectified Output Current
- 1
Surge Forward Current
- 1
I Squared t
- 1
Operating Junction Temperature Range
Storage Temperature Range
Mounting torque
Case mounting Terminals
IO(AV)
IFSM I2t Tjw Tstg Ftor
Conditions
50Hz Half Sine Wave condition Tc=114°C
3 Phase Tc=107°C 50 Hz Half Sine Wave,1Pulse Non-repetitive 2msec to 10msec
Greased
M5 Screw
M5...
