PP200R060, PP200T060 - Integrated IGBT Power Structures

Datasheet Details

Part number	PP200R060, PP200T060
Manufacturer	ETC
File Size	150.02 KB
Description	Integrated IGBT Power Structures
Datasheet	PP200T060-ETC.pdf
Note	This datasheet PDF includes multiple part numbers: PP200R060, PP200T060. Please refer to the document for exact specifications by model.

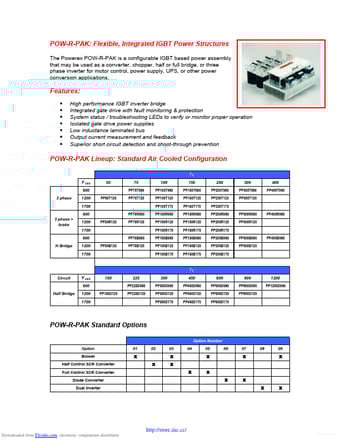

High performance IGBT inverter bridge Integrated gate drive with fault monitoring & protection System status / troubleshooting LEDs to verify or monitor proper operation Isolated gate drive power supplies Low inductance laminated bus Output current measurement and feedback Superior short circuit detection and shoot-through prevention POW-R-PAK Lineup: Standard Air Cooled Configuration IC V CES 600 3 phase 1200 1700 600 3 pha.
